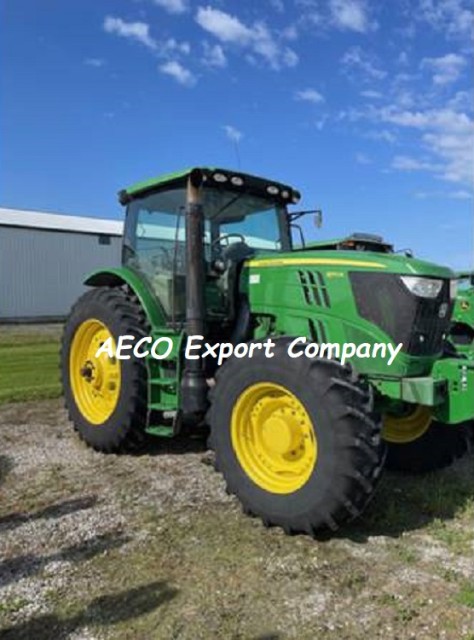

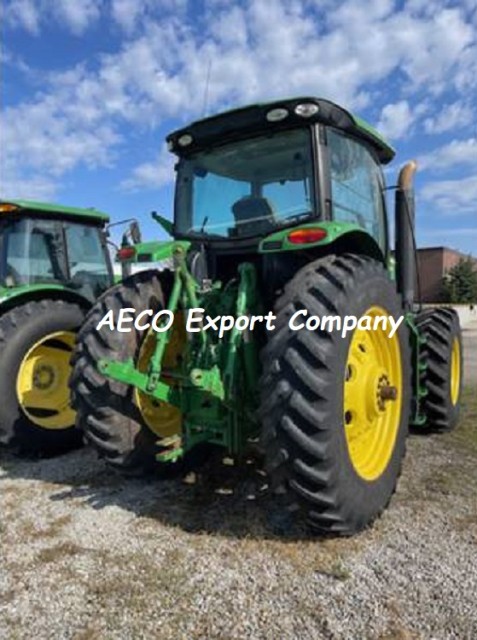

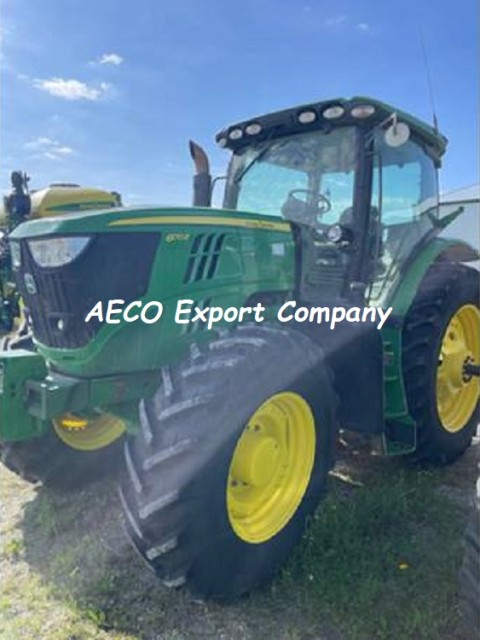

2014 John Deere 6170R Farm Tractor – Export Model from Malaysia

Key Specifications & Features – 2014 John Deere 6170R

The 2014 John Deere 6170R is an agricultural tractor that includes PowrQuad PLUS transmission, mechanical front-wheel drive, 3-point hitch, and deluxe cabin features.

• Operator Interface:


• English Operator's Manual

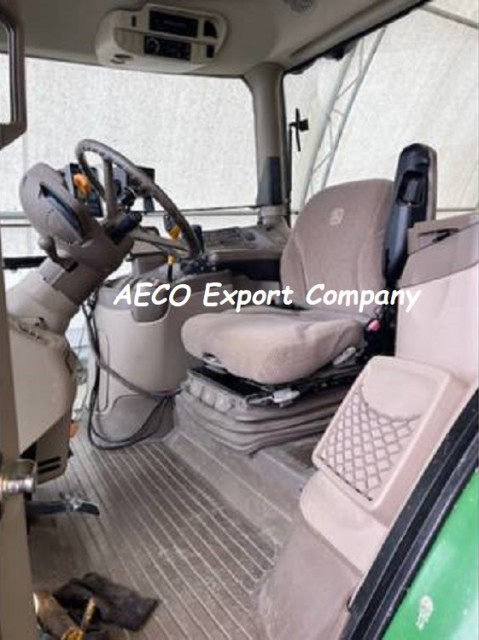

• Base Cab with Deluxe Radio


• Transmission:


• PowrQuad PLUS transmission
• 16 Forward / 16 Reverse speeds (16F/16R)
• Max speed: 19 mph (30 km/h)


• Hydraulic Control:


• Two Deluxe Mechanical Selective Control Valves (3 Detent)
• ISO Breakaway Couplers


• PTO (Power Take-Off):


• Rear Reversible PTO
• Dual Speed: 540 / 1000 RPM


• 3-Point Hitch:


• Capacity: 10,697 lb (4852 kg)
• Category: 3 / 3N
• Telescopic Draft Links with Sway Blocks


• Axle & Differential:


• Mechanical Front Wheel Drive Axle
• Limited Slip Differential


• Wheel & Tire Configuration:


• Rear Tires: 520/85R46 in. 158A8 R2 Radial (Single Wheel Configuration)
• Front Tires: 480/70R34 in. 146A8 R2 Radial


• Steering System:


• Rack and Pinion Steering
• Shaft Diameter: 3.94 in. (100 mm)
• Shaft Length: 100.4 in.
