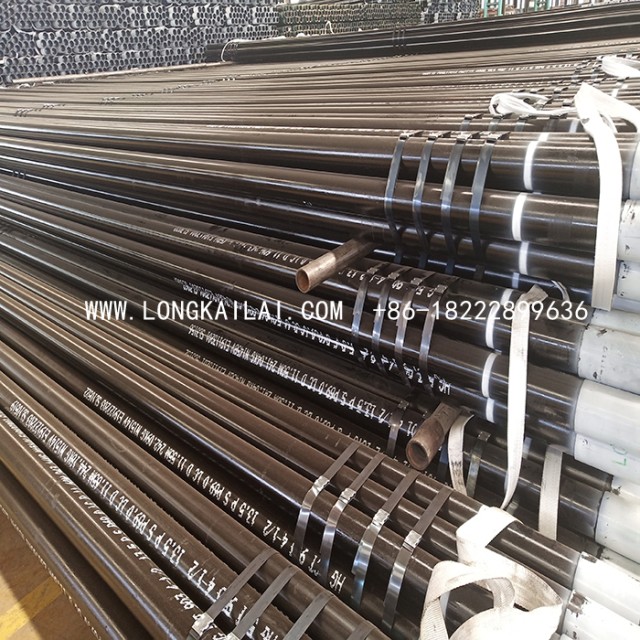

Product Introduction of Oil L80 Tubing by Tianjin Grand Victory Petroleum Equipment Co., Ltd

Description

L80 Tubing Coupling

• The maximum outer diameter (OD) of L80 Tubing coupling is normally 4 1/2 inches.


• L80 Tubing pipes are used in drilling activities; inside the tubing is a sucker rod used to drill or pump oil.


• Coupling types for L80 Tubing are more varied and demanding than those for casing.


• The most common coupling is the thickened upset coupling (internal upset and external upset), abbreviated as EUE coupling.

  It is the most favorable type for L80 Tubing connections.


• L80 Tubing with EU end (EUE) coupling connection is also called UPTBG.


• The thickened (upset) end of the tubing provides better connection stress resistance than buttress coupling.


• Buttress coupling is another type used for L80 Tubing connections. It has the same thickness as the pipe body and is called NU end (NUE) L80 Tubing or TBG.

Features

• The Oil L80 Tubing coupling solves fatigue fracture problems caused by stress concentration in existing couplings.


• The L80 Tubing end connects to the inside wall of the coupling with a tapered thread.


• The coupling body end and tubing are connected with a flat thread having the same thread pitch.


• This design reduces fatigue fractures and provides a strong connection.


• It effectively prevents oil well pipe string break accidents.

Casing Coupling

• Casing coupling is used for pipe sizes larger than 4 1/2 inches.


• Unlike L80 Tubing coupling, casing coupling normally does not require thickening (non-upset).


• Types of casing coupling include:


• BTC: Buttress coupling
• LTC: Long buttress coupling
• STC: Short buttress coupling


• All three types have the same thickness as the casing pipe body, differing only in length.


• Oil casing coupling is essential for connecting two casing pipes.


• The manufacturing method is the same as for seamless pipes.


• The steel pipe ends have internal threads to connect with the upper and lower casing pipes.


• To ensure joint tightness, screw thread precision is strictly controlled.

Company’s Unique Advantages

• Seamless Integration of Production and Sales: Our scientific management allows flexible production scheduling.

  Focusing on one product line lets production align fully with order timelines for smooth implementation.

• Comprehensive Range of Special Couplings at Lower Prices: We hold multiple coupling design authorizations and have experienced workers.

  This enables us to produce couplings that meet various user needs at lower costs, including designs like VAM, HYD511, OTTM, CBS3, 3SB, HSM2, and others.

• Industry-Wide Recognition: Over 17 years, our integrity, quality, and advantages have earned us an excellent reputation that can be verified anytime.
